• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1940–1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106078

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6K6GT 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

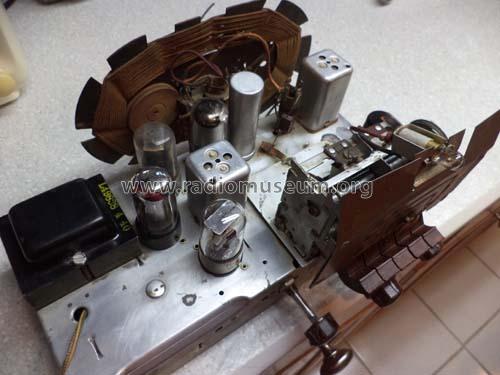

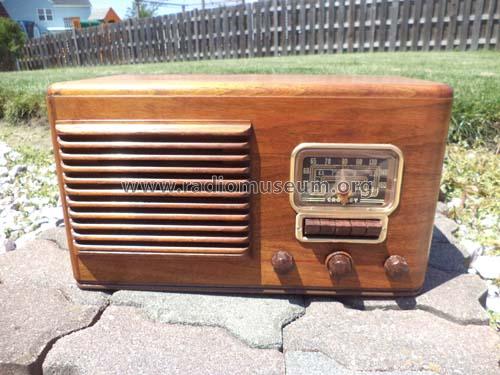

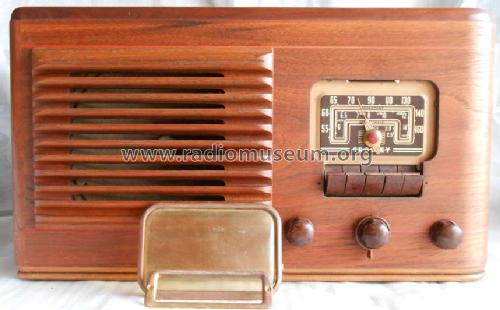

• Model: 23 AR - Crosley Radio Corp.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.75 x 9.5 x 9.5 inch / 425 x 241 x 241 mm

• Price in first year of sale
• 29.95 $

• Literature/Schematics (1)
• Crosley 20th Anniversary Special 1941 catalogue

• Literature/Schematics (2)
• Table Top Radios Vol. 4 Stein 2003 (page 66.)

• Literature/Schematics (3)
• Crosley Folder No. 2901, Season 1940/41.

• Literature/Schematics (4)
• Crosley Folder 1942 for Season 1941/42.

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
