4-29

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36336

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UX201A UX201A UX201A UX201A

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 5 & 45 & 90 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

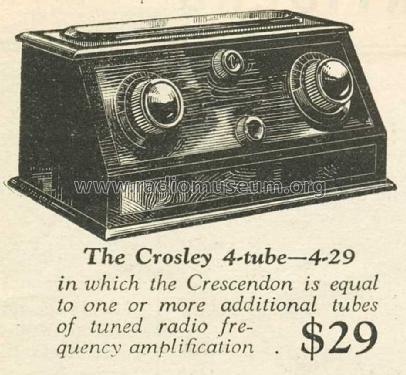

• Model: 4-29 - Crosley Radio Corp.;

• Shape

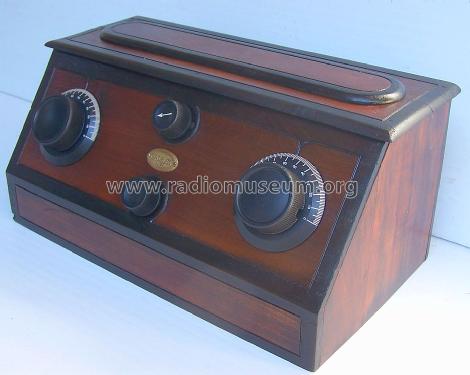

• Tablemodel, slant panel.

• Dimensions (WHD)
• 15.2 x 7.75 x 8 inch / 386 x 197 x 203 mm

• Notes

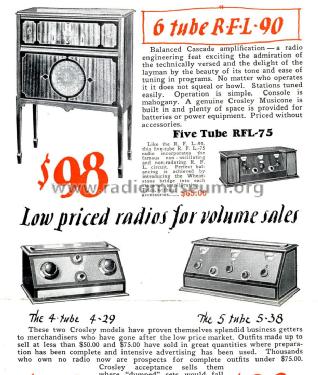

• Two dials (primary tuning control knobs). The model is also shown on a folder from 1927 for dealers.

• Net weight (2.2 lb = 1 kg)
• 3.645 kg / 8 lb 0.5 oz (8.029 lb)

• Price in first year of sale
• 29.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (2)
• Radio Broadcast, Feb. 1926, Page 483
