56TV-0

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1949

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
36783

Schematics

56TV-0 ; Crosley Radio Corp.; (ID = 327781) Radio — Crosley Radio Corp.; 56TV-0 (3)

56TV-0 ; Crosley Radio Corp.; (ID = 327782) Radio — Crosley Radio Corp.; 56TV-0 (3)

56TV-0 ; Crosley Radio Corp.; (ID = 327783) Radio — Crosley Radio Corp.; 56TV-0 (3)

56TV-0 ; Crosley Radio Corp.; (ID = 2883649) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883646) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883653) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883655) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883656) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883657) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 123982) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 123983) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 462750) Radio — Crosley Radio Corp.; 56TV-0 (1)

56TV-0 ; Crosley Radio Corp.; (ID = 1221553) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 1221554) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 1221555) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 1221556) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 1221557) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 1221558) Radio — Crosley Radio Corp.; 56TV-0 (2)

56TV-0 ; Crosley Radio Corp.; (ID = 2692576) Radio — Crosley Radio Corp.; 56TV-0 (1)

56TV-0 ; Crosley Radio Corp.; (ID = 2692577) Radio — Crosley Radio Corp.; 56TV-0 (1)

56TV-0 ; Crosley Radio Corp.; (ID = 2692579) Radio — Crosley Radio Corp.; 56TV-0 (1)

56TV-0 ; Crosley Radio Corp.; (ID = 2692580) Radio — Crosley Radio Corp.; 56TV-0 (1)

56TV-0 ; Crosley Radio Corp.; (ID = 2883647) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883648) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

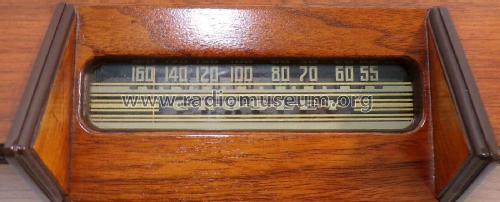

56TV-0 ; Crosley Radio Corp.; (ID = 2883650) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883651) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883652) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883654) Radio — Crosley Radio Corp.; 56TV-0 (2)
eBay item number:334765441666

56TV-0 ; Crosley Radio Corp.; (ID = 2883756) Radio — Crosley Radio Corp.; 56TV-0 (1)
RECONSTRUCTED LABEL

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12SA7 12SK7 12SQ7 50L6GT 35Z5GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
AC/DC-set / 105 - 125 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Power out
1 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: 56TV-0 - Crosley Radio Corp.;

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
13.5 x 8 x 7 inch / 343 x 203 x 178 mm

Notes
Model with P.M. Speaker, 1.75W available.

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 18 = 1949 and before

Other Models
Here you find 1773 models, 1042 with images and 1258 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)

Collections | Museums | Literature

Collections

The model 56TV-0 is part of the collections of the following members.
