56XTA

56XTA ; Crosley Radio Corp.; (ID = 420480) Radio

56XTA ; Crosley Radio Corp.; (ID = 420481) Radio

56XTA ; Crosley Radio Corp.; (ID = 420482) Radio

56XTA ; Crosley Radio Corp.; (ID = 420483) Radio
56XTA ; Crosley Radio Corp.; (ID = 801762) Radio 56XTA ; Crosley Radio Corp.; (ID = 1095262) Radio
56XTA ; Crosley Radio Corp.; (ID = 1095263) Radio 56XTA ; Crosley Radio Corp.; (ID = 1095266) Radio
Use red slider bar for more.
56XTA ; Crosley Radio Corp.; (ID = 801762) Radio
Crosley Radio Corp.;: 56XTA [Radio] ID = 801762 483x341
Select picture or schematic to display from thumbnails on the right and click for download.
For model 56XTA, Crosley Radio Corp.; Cincinnati (OH):
My own collection

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 56XTA - Crosley Radio Corp.;
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
External source of data Ernst Erb

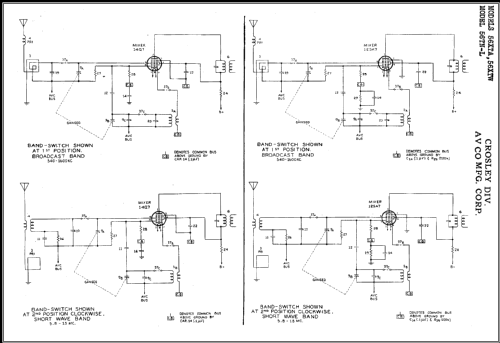

Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
