B-637 Carrior Ch= 586

B-637 Carrior Ch= 586; Crosley Radio Corp.; (ID = 193067) Radio

B-637 Carrior Ch= 586; Crosley Radio Corp.; (ID = 193068) Radio
Use red slider bar for more.
B-637 Carrior Ch= 586; Crosley Radio Corp.; (ID = 193067) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 34 1A6 34 1B5 950
Main principle Superhet with RF-stage; ZF/IF 262 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3/24/90 Volt
Loudspeaker - For headphones or amp.
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: B-637 Carrior Ch= 586 - Crosley Radio Corp.;
Shape Portable set > 8 inch (also usable without mains)
Notes separate outputs for headphones and external permanent-magnet dynamic speaker.
External source of data Ernst Erb

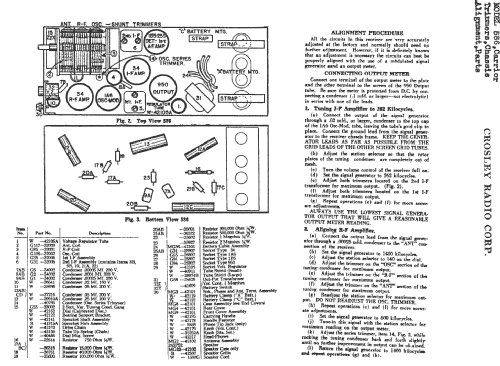

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
