For model 58TL, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 14Q7 14A7 14B6 50A5 35Y4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 58TL - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

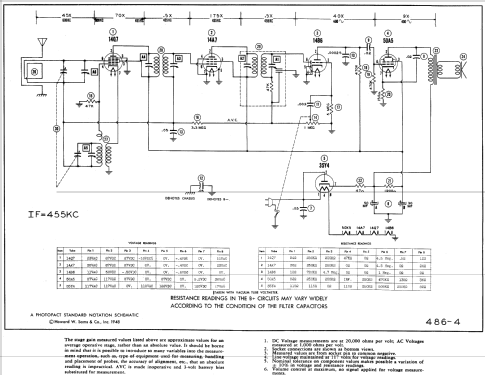

Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-48, Set 36, Folder 4)
