689 ; Crosley Radio Corp.; (ID = 1362659) Radio

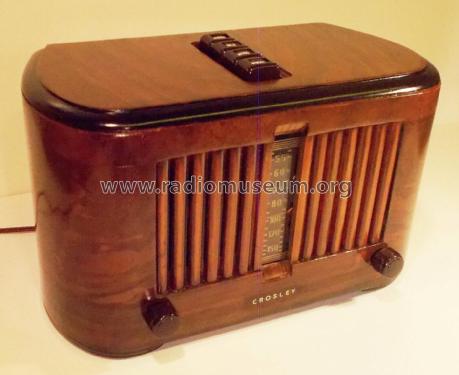

Crosley Radio Corp.;: 689 [Radio] ID = 1362659 640x487
Select picture or schematic to display from thumbnails on the right and click for download.
For model 689, Crosley Radio Corp.; Cincinnati (OH):
American Radio Design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8GT 6K7GT 6SQ7GT 25L6GT 25Z6GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 689 - Crosley Radio Corp.;
Notes sixth tube is a "Crosley ballast tube" W46773
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Table Top Radios Vol. 1 Stein 98 (page 56.)
