83CP Ch= 96

83CP Ch= 96; Crosley Radio Corp.; (ID = 364453) Radio

83CP Ch= 96; Crosley Radio Corp.; (ID = 364454) Radio
83CP Ch= 96; Crosley Radio Corp.; (ID = 2396997) Radio 83CP Ch= 96; Crosley Radio Corp.; (ID = 2396995) Radio
83CP Ch= 96; Crosley Radio Corp.; (ID = 2396996) Radio 83CP Ch= 96; Crosley Radio Corp.; (ID = 2396998) Radio
83CP Ch= 96; Crosley Radio Corp.; (ID = 2396999) Radio 83CP Ch= 96; Crosley Radio Corp.; (ID = 2397000) Radio
Use red slider bar for more.

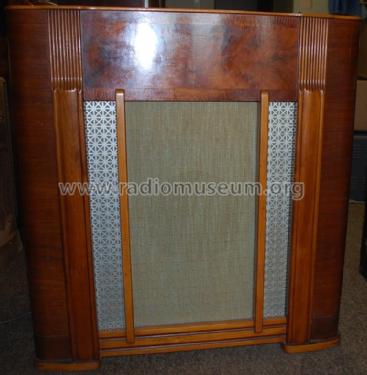

83CP Ch= 96; Crosley Radio Corp.; (ID = 2396997) Radio
Crosley Radio Corp.;: 83CP Ch= 96 [Radio] ID = 2396997 768x784
Select picture or schematic to display from thumbnails on the right and click for download.
For model 83CP Ch= 96, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6SK7GT 6SA7GT 6SK7GT 6SQ7GT 6J5GT 6K6GT 6K6GT 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 6.5 W (unknown quality)
from Radiomuseum.org Model: 83CP Ch= 96 - Crosley Radio Corp.;
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943


All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)
Here you find 1681 models, 1004 with images and 1160 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
