• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1933 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 325654

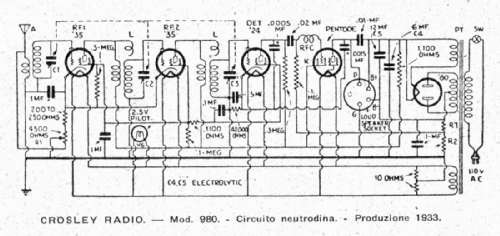

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 35 35 24 unknown_Tube 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); Neutrodyne

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 980 - Crosley Radio Corp.;

• Notes

• "Schemario degli Apparecchi Radio, D.E. Ravalico 1944" named it 980.
  "Schemario degli Apparecchi Radio, D.E. Ravalico, II edizione, 1945" named it 960.

• Mentioned in
• -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli - Italy – 1944.)

• Literature/Schematics (1)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
