A166

A166 ; Crosley Radio Corp.; (ID = 158488) Car Radio

A166 ; Crosley Radio Corp.; (ID = 158489) Car Radio
Use red slider bar for more.
A166 ; Crosley Radio Corp.; (ID = 158488) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1935/1936 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6D6 6A7 6B7 76 41 41
Main principle Super-Heterodyne (Super in general); ZF/IF 262 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: A166 - Crosley Radio Corp.;
Material Metal case
Shape Chassis only or for «building in»
Notes Sync. vibrator for +B. Battery drain ca 6.2 amp at 6 volts.
External source of data Ernst Erb

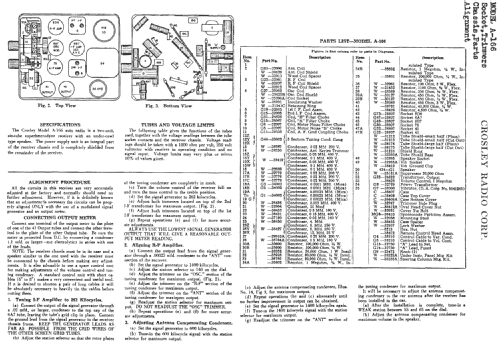

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
