A169

A169 ; Crosley Radio Corp.; (ID = 268935) Car Radio

A169 ; Crosley Radio Corp.; (ID = 268937) Car Radio
A169 ; Crosley Radio Corp.; (ID = 1360358) Car Radio A169 ; Crosley Radio Corp.; (ID = 1360359) Car Radio
Use red slider bar for more.

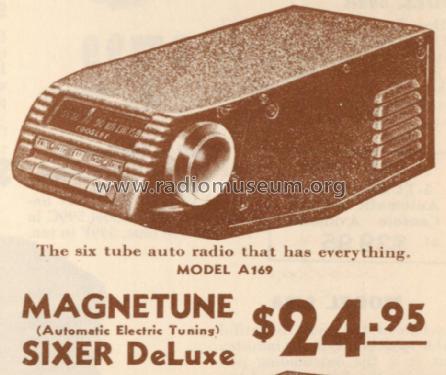

A169 ; Crosley Radio Corp.; (ID = 1360358) Car Radio
Crosley Radio Corp.;: A169 [Car Radio] ID = 1360358 933x783
Select picture or schematic to display from thumbnails on the right and click for download.
For model A169, Crosley Radio Corp.; Cincinnati (OH):
Scanned from the Crosley Folder 1939/40.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1939/1940 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6SK7 6SA7 6SK7 6SQ7 6K6GT 6X5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: A169 - Crosley Radio Corp.;
Material Metal case
Shape Chassis only or for «building in»
Notes

Electric push button tuning system; power supply is working with "Crosley Vibrator" G10-38000.

Price in first year of sale 24.95 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (3) Crosley Folder Season 1939/40.
