A268 Sixer Roamio de Luxe

A268 Sixer Roamio de Luxe ; Crosley Radio Corp.; (ID = 214478) Car Radio

A268 Sixer Roamio de Luxe ; Crosley Radio Corp.; (ID = 214479) Car Radio

A268 Sixer Roamio de Luxe ; Crosley Radio Corp.; (ID = 214481) Car Radio
Use red slider bar for more.
A268 Sixer Roamio de Luxe ; Crosley Radio Corp.; (ID = 214478) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1938 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6A8G 6U7G 6Q7G 6P5G 6AC5G 6X5G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 6 W (unknown quality)
from Radiomuseum.org Model: A268 Sixer Roamio de Luxe - Crosley Radio Corp.;
Notes Vibrator for +B. Power consumption: 6.5A at 6V

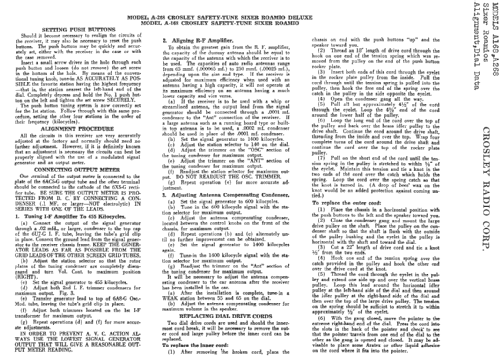

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before

Model page created by Hilmer Grunert. See "Data change" for further contributors.



All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)
Here you find 1665 models, 1000 with images and 1140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
