• Year
  • 1957 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 271486

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • from Radiomuseum.org
  • Model: AT-10M Ch= 487 - Crosley Radio Corp.;
  • Notes

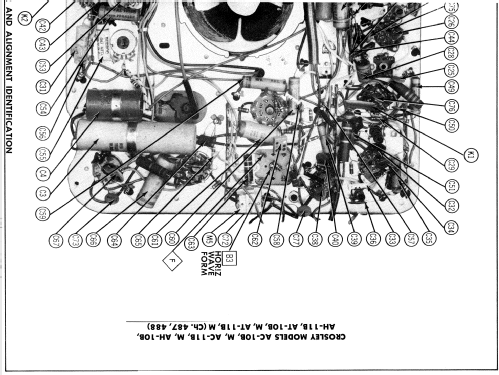

  • The Crosley AT-10M is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 487 and picture tube 21ATP4A.
