Bandbox 601

Bandbox 601; Crosley Radio Corp.; (ID = 73519) Radio
Bandbox 601; Crosley Radio Corp.; (ID = 301999) Radio Bandbox 601; Crosley Radio Corp.; (ID = 302000) Radio
Bandbox 601; Crosley Radio Corp.; (ID = 302001) Radio Bandbox 601; Crosley Radio Corp.; (ID = 302002) Radio
Bandbox 601; Crosley Radio Corp.; (ID = 302003) Radio Bandbox 601; Crosley Radio Corp.; (ID = 462751) Radio
Bandbox 601; Crosley Radio Corp.; (ID = 776533) Radio Bandbox 601; Crosley Radio Corp.; (ID = 776534) Radio
Bandbox 601; Crosley Radio Corp.; (ID = 776535) Radio Bandbox 601; Crosley Radio Corp.; (ID = 776536) Radio
Use red slider bar for more.
Bandbox 601; Crosley Radio Corp.; (ID = 301999) Radio
Crosley Radio Corp.;: Bandbox 601 [Radio] ID = 301999 717x352
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bandbox 601, Crosley Radio Corp.; Cincinnati (OH):
Ebay Nr. 260087170101 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CX301A CX301A CX301A CX301A CX301A CX371A
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 6; 135; 27 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Bandbox 601 - Crosley Radio Corp.;
Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 17.2 x 5.5 x 7.6 inch / 437 x 140 x 193 mm
Notes One dial (primary tuning control knob)
The condensers, the radio frequency coils, the chassis and the wiring are shielded.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 55.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

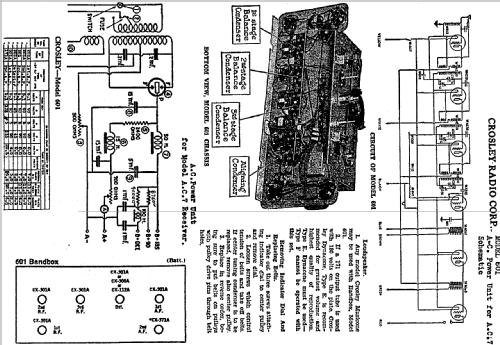

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios (5th edition)
Literature/Schematics (1) Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (2) Table Top Radios Vol. 4 Stein 2003 (page 69.)
