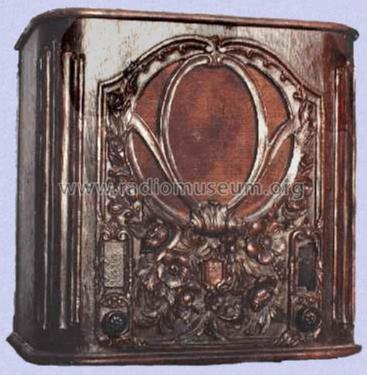

Buddy Boy (54G, 54Q) Ch= 54 flat top

Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 414357) Radio
Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 1489080) Radio Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 1489081) Radio
Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 379383) Radio Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 463242) Radio
Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 463238) Radio Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 463236) Radio
Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 463237) Radio Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 463239) Radio
Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 463240) Radio Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 463243) Radio
Use red slider bar for more.
Buddy Boy Ch= 54; Crosley Radio Corp.; (ID = 1489080) Radio
Crosley Radio Corp.;: Buddy Boy Ch= 54 [Radio] ID = 1489080 480x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model Buddy Boy (54G, 54Q) Ch= 54 flat top, Crosley Radio Corp.; Cincinnati (OH):
Cloth and knobs are original. Unsure if finish is original.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 24A 24A 24A 45 80
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 100-125 Volt

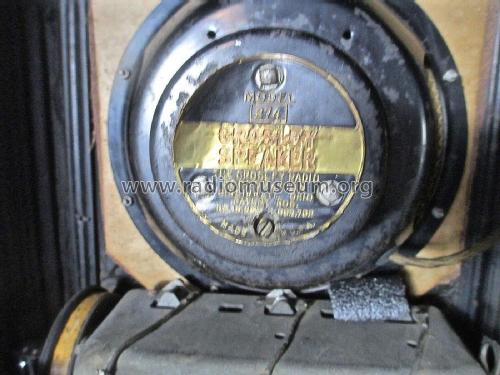

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22.5 cm = 8.9 inch
Power out
from Radiomuseum.org Model: Buddy Boy Ch= 54 [flat top] - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 400 x 390 x 240 mm / 15.7 x 15.4 x 9.4 inch
Notes The literature is at variance about the model number (for instance 54 or 54G or 54Q), as well as in the name: New Buddy, or Buddy Boy or New Buddy Boy. There are round top and flat top cabinets. But it is not clear which cabinet belongs to which number and name. The sources are divergent. Almost any combination can be found.
Moulded Repwood , Tombstone. Although the schematic does not indicate, Crosley calls it a Neutrodyne in the original ad from 1930 (A Blast from the Past).

In other words: Crosley Buddy Boy has been made in different forms and also for different chassis. Here it is chassis 54 (2 knobs) - please do not confuse with similar chassis 56 (2 knobs) and chassis 58 (3 knobs). The "New Buddy Boy" for chassis 56 has the scale over the right knob (two knobs) - as has chassis 54. The Crosley 56 is the DC version of this AC model 54(G) - which you can find in two versions: "round top" and "flat top".
Net weight (2.2 lb = 1 kg) 12.7 kg / 27 lb 15.6 oz (27.974 lb)
Price in first year of sale 64.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Machine Age to Jet Age II (Bunis/Slusser ,any vol.of 2 to 7;)
Literature/Schematics (1) A Blast from the Past (p.64)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 81.)
