Buddy Boy 58 Ch= 58

Crosley Radio Corp.; Cincinnati (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Crosley Radio Corp.; Cincinnati (OH)

Year
1931

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
36804

Schematics

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1773399) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (3)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1773400) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (3)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1773401) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (3)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1773402) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (3)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 83631) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (3)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1773408) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (3)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1046420) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)
ebay 200642011674

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1046421) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)
ebay 200642011674

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1046422) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)
ebay 200642011674

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1441712) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)
This is the inside of the machine.

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1441713) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)

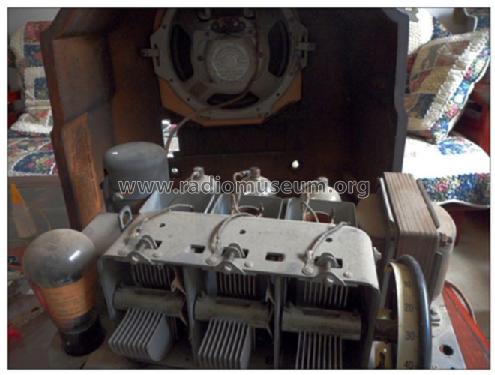

This is the inside of the machine.

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1441714) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)
This is the inside of the machine.

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1441715) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)
This is the appearance of the machine

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1441716) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)
This is the appearance of the machine

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1571006) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1571007) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1571008) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1571009) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1571010) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1571011) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809524) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809526) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809527) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809528) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809529) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809532) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809533) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 1809534) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2199748) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (2)
Quelle: Rádióélet, 1931.

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2641415) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)
DE MI COLECCION

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2641416) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2641417) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2713536) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2713537) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2713539) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)

Buddy Boy 58 Ch= 58; Crosley Radio Corp.; (ID = 2713543) Radio — Crosley Radio Corp.; Buddy Boy 58 Ch= 58 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
24 24 24 45 80

Main principle
TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935

Tuned circuits
3 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / Either transformer: 60 cycles, 110V, or 25 cycles, 110V or 25 cycles, 220 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 9 inch = 22.9 cm

Material
Wooden case

from Radiomuseum.org
Model: Buddy Boy 58 Ch= 58 - Crosley Radio Corp.;

Shape
Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

Dimensions (WHD)
16.7 x 15.7 x 10.3 inch / 424 x 399 x 262 mm

Notes
The literature is at variance about the Buddy Boy models, for instance model number 54 or 54G - or 54Q, as well as in the name: New Buddy, or Buddy Boy or New Buddy Boy. The only difference is in the cabinet, where there is a round top version and a flat top version. But which cabinet belongs to which number and name is not clear. The sources are divergent. Almost any combination can be found.
Moulded Repwood , Tombstone. Although the schematic does not indicate, Crosley calls it a Neutrodyne in the original ad from 1930 (A Blast from the Past).

In other words: Crosley Buddy Boy has been made in different forms and also for different chassis. Here it is chassis 58 (3 knobs) - please do not confuse with similar chassis 56 (2 knobs) and chassis 54 (2 knobs). The "New Buddy Boy" for chassis 56 has the scale over the right knob (two knobs) - as has chassis 54. The Crosley 56 is the DC version of this AC model 54(G) - which you can find in two versions: "round top" and "flat top". Crosley Buddy Boy has been made in different forms and also for different chassis. Here it is chassis 58 (3 buttons) - please do not confuse mit similar chassis 54 (2 buttons). Case is made of Repwood. The field coil has 10000 Ohms, 1 1/8" high, 2 1/8" dia., core 3/4" dia. There is also a "New Buddy Boy" for chassis 56 - which has the scale over the right knob (two knobs). repwood

Net weight (2.2 lb = 1 kg)
17.7 kg / 38 lb 15.8 oz (38.987 lb)

Price in first year of sale
60.00 $

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

Mentioned in
Machine Age to Jet Age II

Literature/Schematics (1)
Radio Collector`s Guide 1921-1932

Literature/Schematics (2)
A Blast from the Past (p.64)

Literature/Schematics (3)
- - Manufacturers Literature (The Crosley Service Bulletin No. A4 dated April 15, 1931)

Literature/Schematics (4)
Crosley Radio Service Manual: 1943 Sets and Earlier (Volume 1943 and earlier, Page 111)
