10-138

• Country
• Canada

• Manufacturer / Brand
• Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180679

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 or 6BJ6 12AV6 or 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 2.3 W (max.)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 10-138 - Crosley Radio and Television

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.5 x 7 x 7 inch / 318 x 178 x 178 mm

• Notes

• Canada Supplements. Built in loop antenna.
  Color: Maroon.

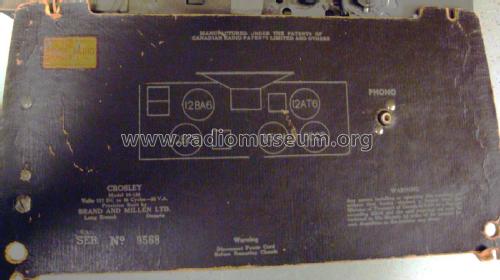

  Some units were built by Brand and Millen at Long Branch Ontario Canada for Crosley.

  Power consumption 35 watts.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
