• Country
• Canada

• Manufacturer / Brand
• Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180683

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Bakelite case

• from Radiomuseum.org

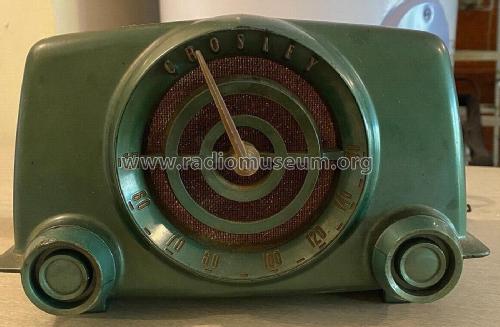

• Model: 11-102U - Crosley Radio and Television

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 254 x 145 x 157 mm / 10 x 5.7 x 6.2 inch

• Notes

• Canada supplements. Built-in loop antenna.

  Color : green

  Material : painted bakelite

  Power consumption : 35 W

• Net weight (2.2 lb = 1 kg)
• 1.850 kg / 4 lb 1.2 oz (4.075 lb)

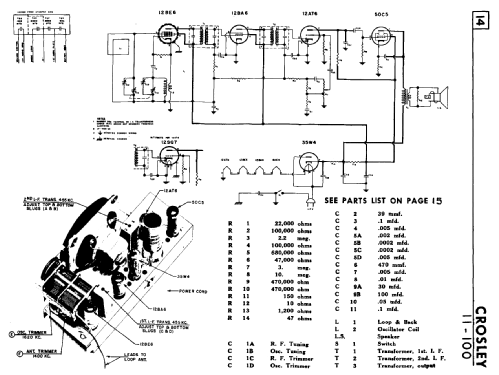

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements Crosley page 14

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
