For model 11-103U, Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario

Country:  Canada
Manufacturer / Brand:  Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: 11-103U - Crosley Radio and Television

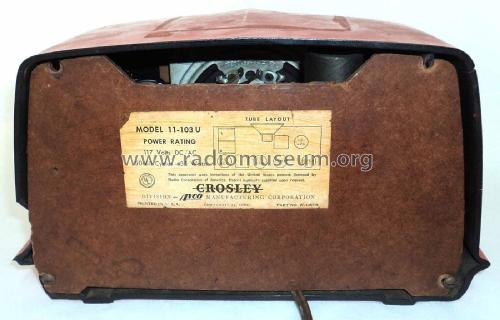

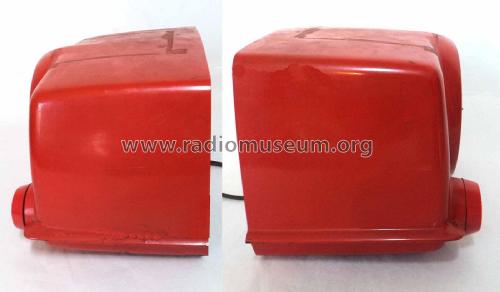

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 254 x 145 x 157 mm / 10 x 5.7 x 6.2 inch
Notes

Canada supplement. Built-in loop antenna.

Color : red

Material : painted bakelite

Power consumption : 35 W

Net weight (2.2 lb = 1 kg) 1.850 kg / 4 lb 1.2 oz (4.075 lb)
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Canada Supplements Crosley page 14

Model page created by Dirk Taekels. See "Data change" for further contributors.
