- Country
- Canada
- Manufacturer / Brand
- Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180691
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 1.5; 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 11-304U - Crosley Radio and Television
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Canada Supplements. Built-in loop antenna. Selenium rectifier. Line voltage = AC/DC.
Material:
Bakelite, brown w/ tan.
- Circuit diagram reference
- Radio College of Canada
- Mentioned in

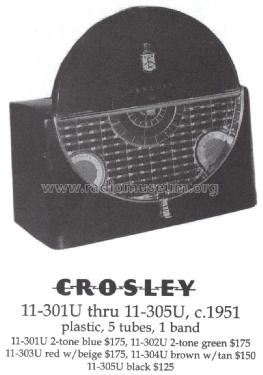

- Table Top Radios Vol. 1 Stein 98 (page 52.)
- Literature/Schematics (1)
- Canada Supplements Crosley page 16
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
