- Country
- Canada
- Manufacturer / Brand
- Crosley Radio and Television Ltd.; Toronto and Moffats, Ontario
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152553
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

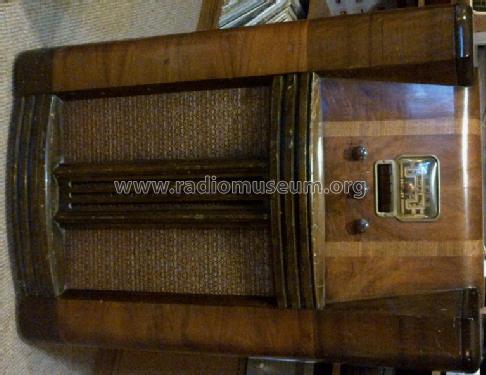

- Model: 12B - Crosley Radio and Television
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17 x 11 x 9 inch / 432 x 279 x 229 mm
- Notes
- Schematic is corrected, since in original the base connections for the 5Y4G are nor correct. Heater must go to 7-8 (not to 1-8)!
- Net weight (2.2 lb = 1 kg)
- 7.718 kg / 17 lb 0 oz (17 lb)
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- Crosley page 21
- Author
- Model page created by Ashis Mukerjea. See "Data change" for further contributors.
