Collector´s Edition Radio CR-1

Crosley Radio (Retro Electronics); Louisville (KY)

Data
Forum
Pictures
Collections

  • Year
  • 1993 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 181922

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Collector´s Edition Radio CR-1 - Crosley Radio Retro
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 12 x 7 x 6 inch / 305 x 178 x 152 mm
  • Notes

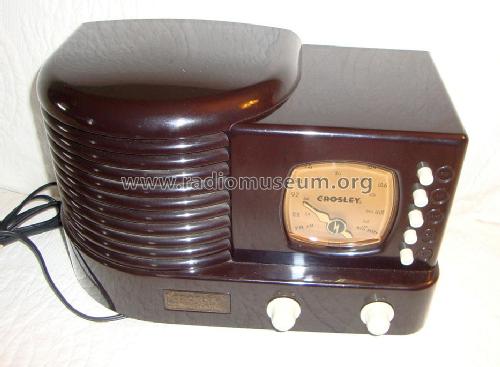

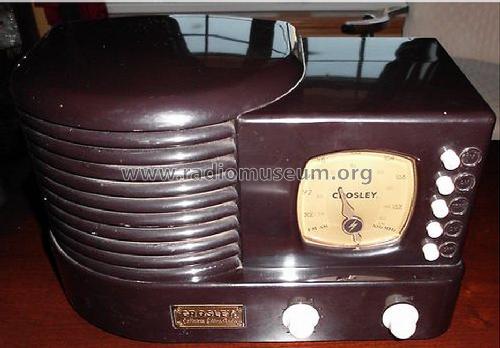

  • Crosley Collector´s Edition Radio - Limited Edition Radio CR 1;
    Replica of ´1938 Zenith 5-R-312, Ch=5528 with push-button presets, made in China.

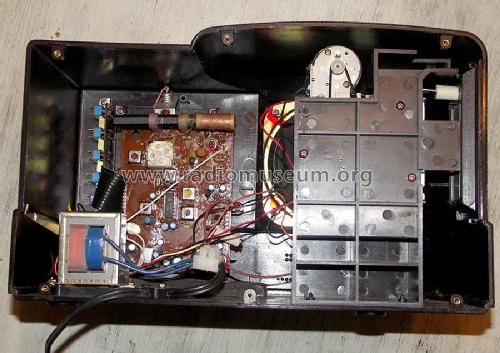

    Tuner based on the KA22471 FM/AM integrated circuit. Output amplifier based on C1213C.

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
