For model Receiver No. 6 (VI), Crosley Radio Corp.; Cincinnati (OH):

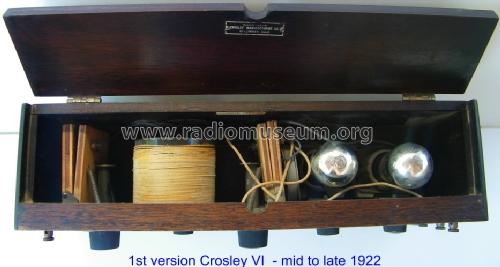

This is the first version of the Crosley VI. This early sets used porcelain tube sockets, wooden book condensors, 7 tap switch for the coil and rheostat knobs with pointers. This set was first advertised in Sept. 1922 in Radio News and QST.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1922 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2:
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Receiver No. 6 - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Two dials (primary tuning control knobs). There is also the "Special" model in a larger cabinet, and a portable model, too. See the different versions with arrow knobs or not etc.
Price in first year of sale 30.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (3) Radio Digest Illustrated, 1922 Jul. 29, p. 6
