For model D-25WE Ch= 311, Crosley Radio Corp.; Cincinnati (OH):
crosley D25-2

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12SQ7 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: D-25WE Ch= 311 - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)

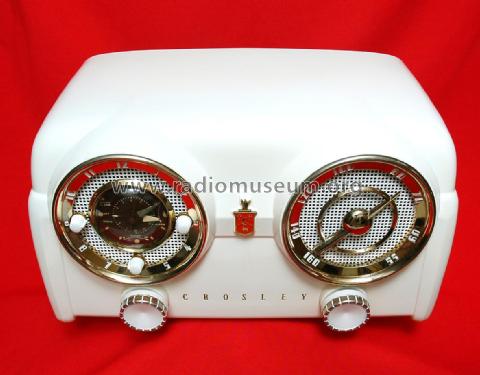

Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 13.3 x 7.7 x 7.1 inch / 338 x 196 x 180 mm
Notes Color White
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Beitman Radio Diagrams Vol. 11, 1951
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Rider's Perpetual, Volume 22 = covering 1951
