DE-AMPLO-UNIT

DE-AMPLO-UNIT ; Crosley Radio Corp.; (ID = 1173032) mod-pre26 DE-AMPLO-UNIT ; Crosley Radio Corp.; (ID = 1173033) mod-pre26
DE-AMPLO-UNIT ; Crosley Radio Corp.; (ID = 1173034) mod-pre26
Use red slider bar for more.
DE-AMPLO-UNIT ; Crosley Radio Corp.; (ID = 1173032) mod-pre26
Crosley Radio Corp.;: DE-AMPLO-UNIT [mod-pre26] ID = 1173032 933x1164
Select picture or schematic to display from thumbnails on the right and click for download.
For model DE-AMPLO-UNIT, Crosley Radio Corp.; Cincinnati (OH):

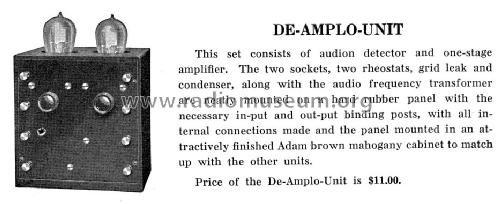

Circa December 1922 Crosley Catalog page 16

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1922/1923 Category: Radio module pre 1926 (not a part, not a key)
Valves / Tubes 2: UV200 UV201
Main principle Detector with Vacuum Tube (Valve), no tuner; 1 AF stage(s)
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DE-AMPLO-UNIT - Crosley Radio Corp.;
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Crosley DE-AMPLO_UNIT Consists of audion detector and one-stage amplifier neatly mounted in a mahogany finished cabinet.
Price in first year of sale 11.00 $
Literature/Schematics (1) QST (January 1923, advertisement page 85)

Model page created by Alan Larsen. See "Data change" for further contributors.
