Dual Companion Ch= 176

Dual Companion Ch= 176; Crosley Radio Corp.; (ID = 1513261) Radio
Use red slider bar for more.
Dual Companion Ch= 176; Crosley Radio Corp.; (ID = 1513261) Radio

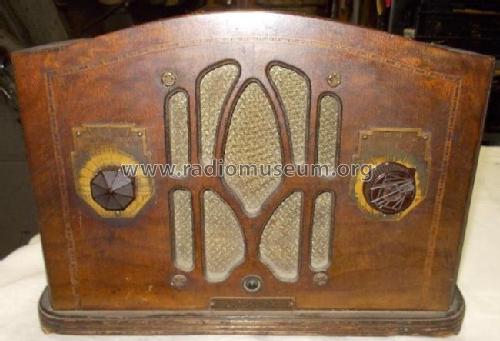

Crosley Radio Corp.;: Dual Companion Ch= 176 [Radio] ID = 1513261 500x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Companion Ch= 176, Crosley Radio Corp.; Cincinnati (OH):
Crosley Broadcaster 12, Nov. 15 1933

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW), Police, sometimes also early TV (75-200m).
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dual Companion Ch= 176 - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.25 x 7.875 x 4.75 inch / 286 x 200 x 121 mm
Price in first year of sale 26.00 $
Mentioned in - - Manufacturers Literature (Crosley Service Supplement Index, Suppl. 57)
Literature/Schematics (1) - - Manufacturers Literature (Crosley Broadcaster 12, Nov. 15 1933)
Literature/Schematics (2) Rider's Perpetual, Volume 4 = ca. 1934 and before

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
