Dual Sixty Ch= 6V2

Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 140806) Radio

Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 140808) Radio

Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 140807) Radio
Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 1358409) Radio Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 1358411) Radio

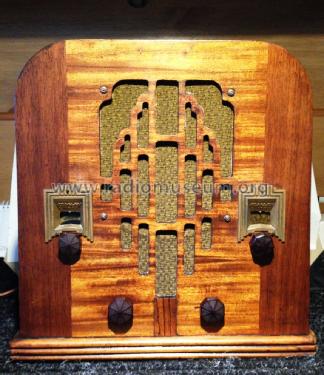

Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 1917449) Radio Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 1917450) Radio
Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 1917451) Radio Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 1917452) Radio
Use red slider bar for more.
Dual Sixty Ch= 6V2; Crosley Radio Corp.; (ID = 1358409) Radio
Crosley Radio Corp.;: Dual Sixty Ch= 6V2 [Radio] ID = 1358409 750x809
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Sixty Ch= 6V2, Crosley Radio Corp.; Cincinnati (OH):
Scanned from the Crosley Folder Season 1933/34.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 58 2A7 58 55 2A5 80
Main principle Superhet with RF-stage; ZF/IF 181 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dual Sixty Ch= 6V2 - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 13.75 x 13.75 x 8.25 inch / 349 x 349 x 210 mm
Notes

This Crosley model has the same chassis as the Crosley model Dual Sixty Lowboy.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Literature/Schematics (3) Crosley Folder Season 1933/34.
