For model E10BE Ch= 10E, Crosley Radio Corp.; Cincinnati (OH):

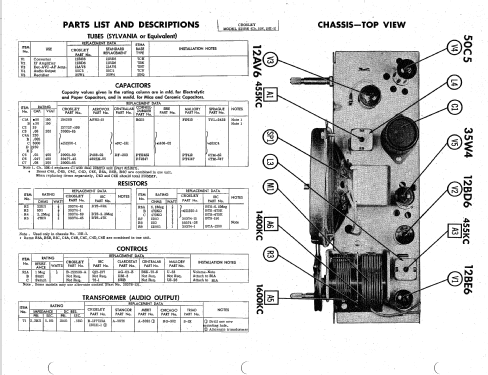

Copy from Ebay seller tojudge1
Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Model: E10BE Ch= 10E - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Color=Blue
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Mentioned in Guide to Old Radios (Machine Age to J.Vol.2 Stein 97)
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954
