E10CE Ch= 10E-1

E10CE Ch= 10E-1; Crosley Radio Corp.; (ID = 160834) Radio
E10CE Ch= 10E-1; Crosley Radio Corp.; (ID = 129966) Radio E10CE Ch= 10E-1; Crosley Radio Corp.; (ID = 538166) Radio
E10CE Ch= 10E-1; Crosley Radio Corp.; (ID = 129967) Radio
Use red slider bar for more.
E10CE Ch= 10E-1; Crosley Radio Corp.; (ID = 129966) Radio
Crosley Radio Corp.;: E10CE Ch= 10E-1 [Radio] ID = 129966 496x293
Select picture or schematic to display from thumbnails on the right and click for download.
For model E10CE Ch= 10E-1, Crosley Radio Corp.; Cincinnati (OH):
eBay seller syes.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: E10CE Ch= 10E-1 - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Color=Chartreuse
External source of data Ernst Erb
Source of data Guide to Old Radios

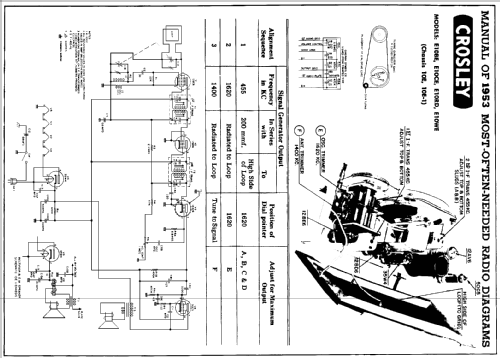

Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Mentioned in Machine Age to Jet Age II
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954
