For model E15SL Ch= 15-20E, Crosley Radio Corp.; Cincinnati (OH):
Crosley E-15SL

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: E15SL Ch= 15-20E - Crosley Radio Corp.;
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.9 x 7.25 x 7.25 inch / 328 x 184 x 184 mm
Notes Color: Steel Blue, painted.
Price in first year of sale 40.00 $
External source of data Ernst Erb

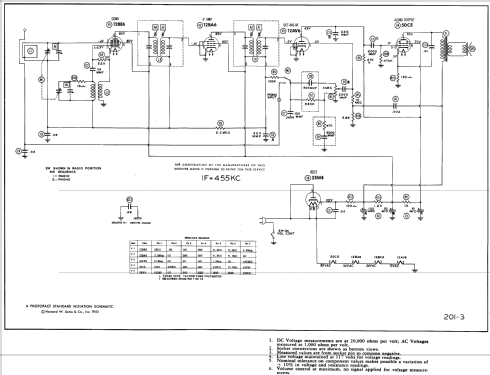

Circuit diagram reference Beitman Radio Diagrams Vol. 12, 1952
Mentioned in Rider's Perpetual, Volume 23 (last) = covering up to 1954

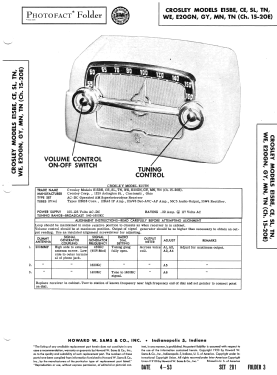

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-53, Set 201, Folder 3)
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 56.)
