E20GY Ch= 15-20E; Crosley Radio Corp.; (ID = 1718462) Radio

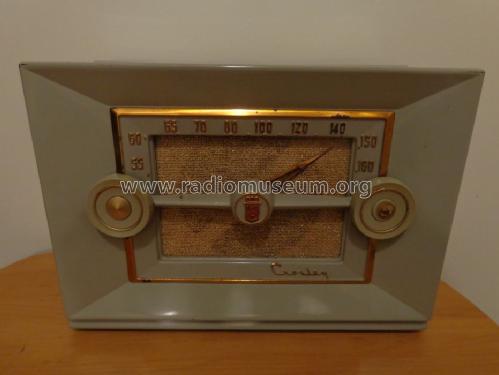

Crosley Radio Corp.;: E20GY Ch= 15-20E [Radio] ID = 1718462 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model E20GY Ch= 15-20E, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: E20GY Ch= 15-20E - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Color: Grey.
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Beitman Radio Diagrams Vol. 12, 1952
Mentioned in Rider's Perpetual, Volume 23 (last) = covering up to 1954
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-53, Set 201, Folder 3)
