For model E20MN Ch= 15-20E, Crosley Radio Corp.; Cincinnati (OH):
By courtesy of Ebay Seller oldradiodaze @Mr. Carl Gelormini

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner

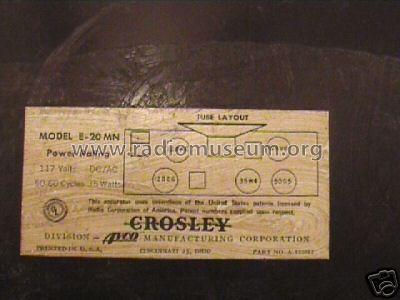

Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: E20MN Ch= 15-20E - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Color: Maroon.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Beitman Radio Diagrams Vol. 12, 1952
Mentioned in Rider's Perpetual, Volume 23 (last) = covering up to 1954
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-53, Set 201, Folder 3)
