For model E30TN Ch= 30E 30E1 (30 E-1), Crosley Radio Corp.; Cincinnati (OH):
Sams photofact set 206 folder 3 date 6-53.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12BA6 12AT7 12BA6 12BA6 12BE6 19T8 35C5
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: E30TN Ch= 30E 30E1 - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes ZF/IF: 455/10700 kc; Color=Tan.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

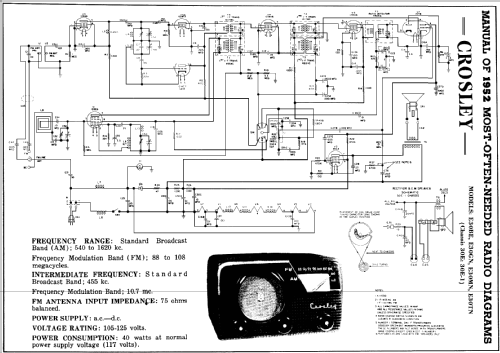

Circuit diagram reference Beitman Radio Diagrams Vol. 12, 1952
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954
