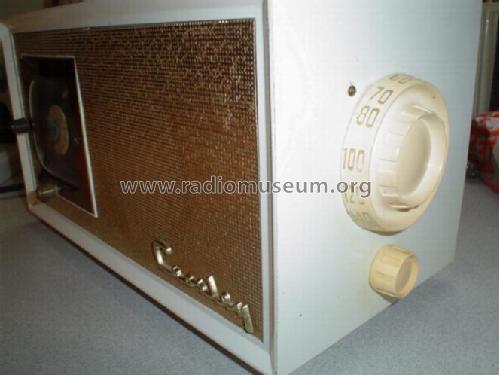

For model E-90WE Ch= 90E, Crosley Radio Corp.; Cincinnati (OH):
By Courtesy Of EBAY User: akachuck

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner

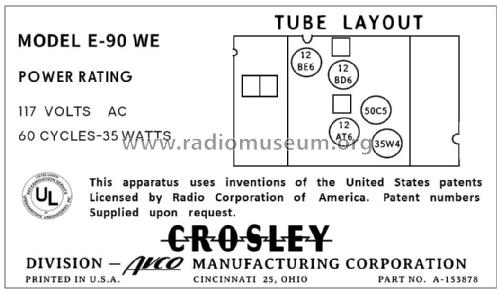

Valves / Tubes 5: 12BE6 12BD6 12AT6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: E-90WE Ch= 90E - Crosley Radio Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes Color=White
External source of data Ernst Erb
Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Mentioned in Collector's Guide to Antique Radios (6th edition) (Rider's Perpetual, Volume 23 (last))
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-53, Set 217, Folder 4)
