• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36539

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1L6 1U4 1U5 3V4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Batteries (any type) / Either AC or DC 117 or Batteries: 9 and 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.3 W (unknown quality)

• from Radiomuseum.org

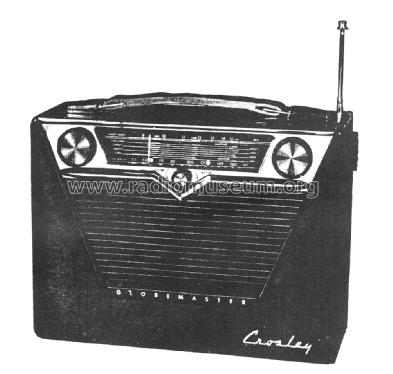

• Model: Globemaster F-115TN Ch= 115F - Crosley Radio Corp.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• The Crosley F115 is a 5-tube line or battery powered portable radio. Covers standard AM broadcast and 8.4-15.4 MHz shortwave.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 14, 1954

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Other Models

• Here you find 1773 models, 1042 with images and 1258 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)
