For model Harko Senior V + Two-Step Amplifier Combination without front swith, Crosley Radio Corp.; Cincinnati (OH):
Late 1922 Harko Senior V Two-Step Amplifier Combination without front switch on amplifier

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1922 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UV200 UV201 UV201
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / storage 6 & dry 22.5 + 45 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Harko Senior V + Two-Step Amplifier Combination [without front swith] - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).

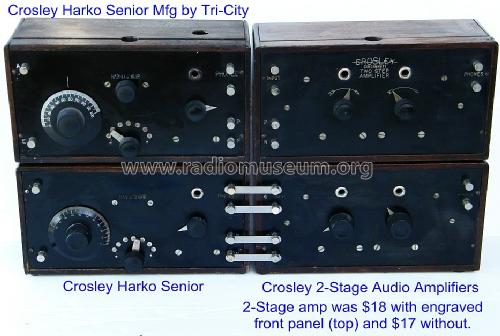

Notes This combination consists of two separate boxes: a Harko Sr. V and a 2-stage Amplifier. Recommended in an ad August 1922 in "Radio News".
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Mentioned in Radio Manufacturers of the 1920s, Vol 1 (p.117)
Literature/Schematics (4) Radio News (August 1922, page 215)
