JC-6BK Ch= R103
Use red slider bar for more.

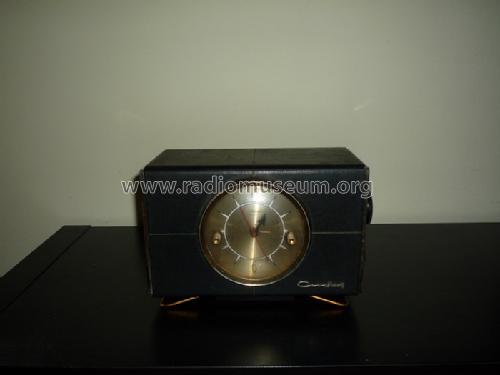

Crosley Radio Corp.;: JC-6BK Ch= R103 [Radio] ID = 586420 700x640
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1955 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 12BE6 12BA6 12AV6 50C5 35W4 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 60 Hz, 117V = 115 -125 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm |
| Power out | |
| from Radiomuseum.org | Model: JC-6BK Ch= R103 - Crosley Radio Corp.; |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel with Clock ((Alarm-) Clock Radio). |
| Notes | AC Operated AM Superheterodyne Reciver with Electric Clock.Color=black.
|

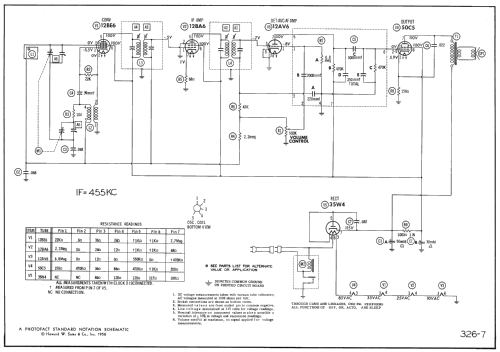

| Circuit diagram reference | Beitman Radio Diagrams Vol. 16, 1956 |

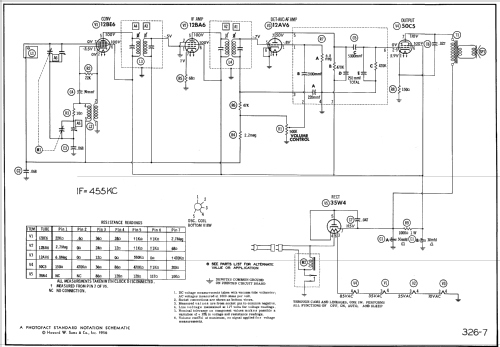

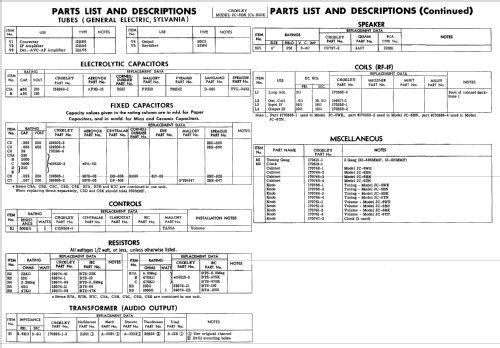

| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Date 8-56, Set 326, Folder 7) |
Model page created by Egon Penker. See "Data change" for further contributors.
