• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82505

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117 AC DC / 7.5 / 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

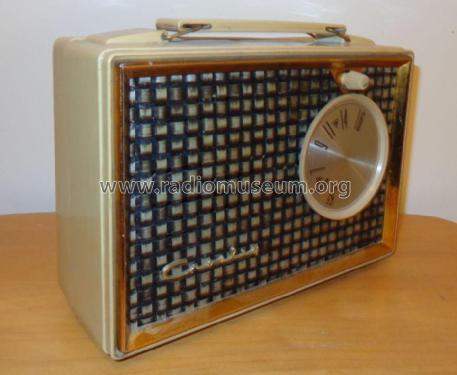

• Model: P-60GY Ch= 5060P - Crosley Radio Corp.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Selenium Rectifier; Color=Gray

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
