For model Special DeLuxe 51-SD, Crosley Radio Corp.; Cincinnati (OH):
ebay #190301582626

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: UV201A UV201A
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Special DeLuxe 51-SD - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 11.75 x 8 x 11.75 inch / 298 x 203 x 298 mm
Notes

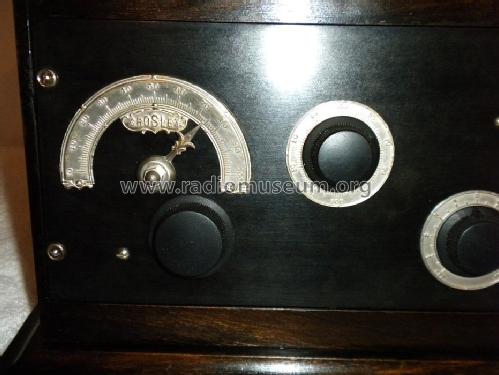

Redesigned front panel embellished with dial scales. Decorative case holding all dry A and B batteries inside.
Operating instructions (see tech.info) show a choice of completely different tube configurations:
2 x UV201A needs a 6 v storage "A" Battery
2 x WD12 uses 1.5 v dry "A" Battery
2 x UV199 requires 3 x 1.5 v (= 4.5 v) dry batteries plus socket adaptors.
Same is valid for the Cunningham equivalents.

Later models could also use the following combinations:
2 x UX199;
2 x UX201A;
and for increased output power:
UX201A and UX112A
UX201A and UX171A;
UX199 and UX120;

Later models have a terminal to connect a "C" bias battery in case of operation with an output tube of increased power: UX112A (max 0.2 Watt); UX171A (max. 0.7 Watt); UX120 (max. 0.11 Watt).

Price in first year of sale 23.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (2) Adv. Radio Broadcast, Oct. 1925
