• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1923/1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36613

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Material
• Wooden case

• from Radiomuseum.org

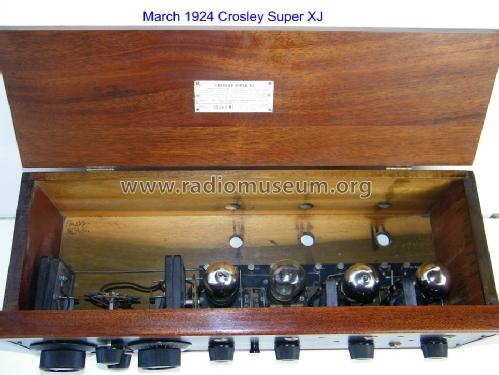

• Model: Super XJ - Crosley Radio Corp.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• Two dials (primary tuning control knobs). Model XJ with tickler added.

• Price in first year of sale
• 65.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition
