Type V

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1923

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84519

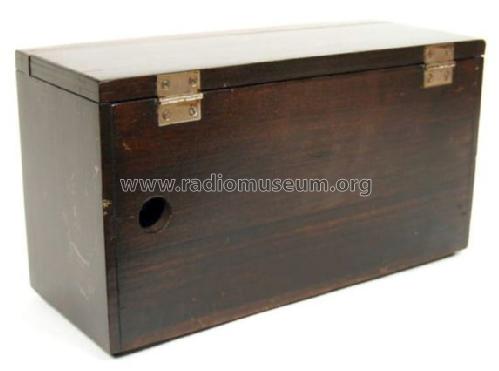

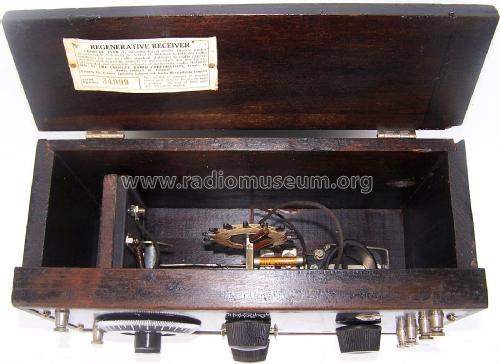

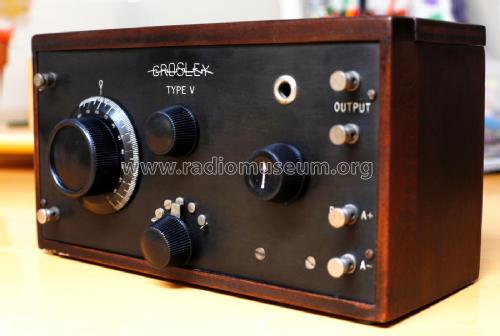

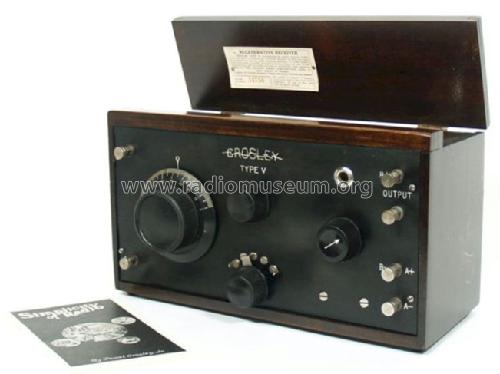

• Picture

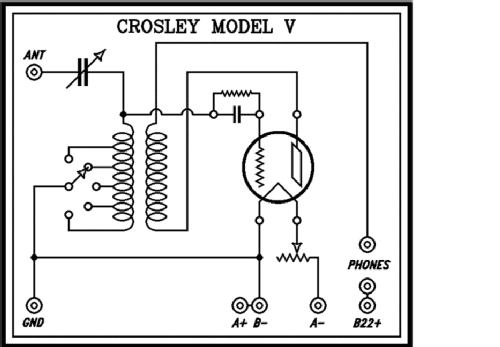

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Type V - Crosley Radio Corp.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 11 x 6 x 5.5 inch / 279 x 152 x 140 mm

• Notes

• Crosley Type V (5) is similar to Precision ACE V Special, ACE V and Crosley Cincinnaty Model V and other Crosleys. Book condenser.

• Price in first year of sale
• 16.00 USD

• Mentioned in
• Radio Manufacturers of the 1920s, Vol 1

• Literature/Schematics (1)
• Radio Broadcast, Adv. 1923/24

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
