48 Wiget (Elf. Wigit) 5 tube chassis

48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 1016181) Radio

48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 186567) Radio

48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 1016292) Radio

48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 1016288) Radio
48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679022) Radio 48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679023) Radio
48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679024) Radio 48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679025) Radio
48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679027) Radio 48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679028) Radio
48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679030) Radio 48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 717162) Radio
48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 1016002) Radio 48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 1028958) Radio
Use red slider bar for more.
48 Wiget 5 tube chassis; Crosley Radio Corp.; (ID = 679022) Radio
Crosley Radio Corp.;: 48 Wiget 5 tube chassis [Radio] ID = 679022 373x406
Select picture or schematic to display from thumbnails on the right and click for download.
For model 48 Wiget (Elf. Wigit) 5 tube chassis, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1931 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 24 24 24 45 80
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 100-125 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 48 Wiget 5 tube chassis - Crosley Radio Corp.;
Material Wooden case

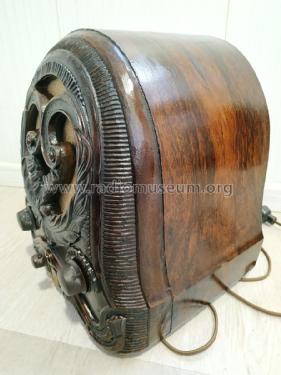

Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 310 x 297 x 230 mm / 12.2 x 11.7 x 9.1 inch
Notes

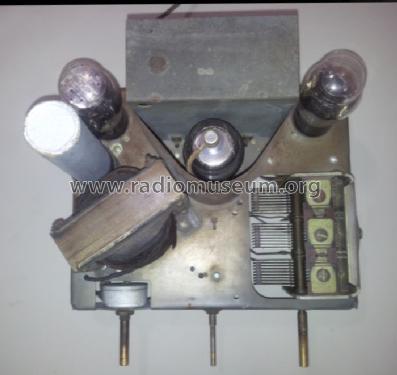

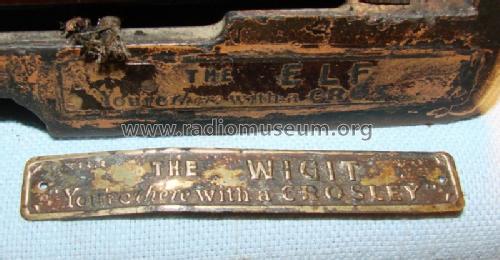

The only reliable aspect to distinguish model 47 and 48 is the chassis, which employs 5 tubes for the 48, and only 4 tubes for the 47. Both names Wigit and Elf can have either chassis, be it from manufacture ar later by a collector. The Repwood (pressed wood) cabinet is always the same. Ornate carved front. The name Wigit is often found misspelled like Widgit (Slusser) or Wiget (Grinder). At ARC November 1985, page 3 with photo it is named Wiget.
There is also a small console "48 Johnny Smoker".

Net weight (2.2 lb = 1 kg) 9.4 kg / 20 lb 11.3 oz (20.705 lb)
Price in first year of sale 39.00 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (2) A Blast from the Past (p.64)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 81.)
