Connoisseur VB1 Ch= TE100

Connoisseur VB1 Ch= TE100; Crosley Brand (ID = 2134330) Television
Use red slider bar for more.
Connoisseur VB1 Ch= TE100; Crosley Brand (ID = 2134330) Television

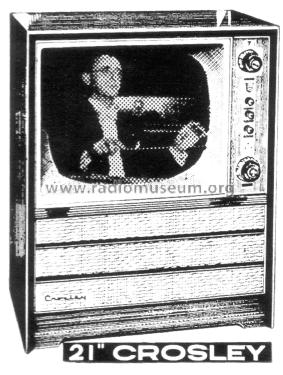

Crosley Brand: Connoisseur VB1 Ch= TE100 [Television] ID = 2134330 1400x1850
Select picture or schematic to display from thumbnails on the right and click for download.
For model Connoisseur VB1 Ch= TE100, Crosley (Brand) Australia:
From Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  Crosley (Brand) Australia
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: 6CW7 6BL8 6BY7 6BY7 6BX6 6BX6 6AL5 12BY7 6BX6 6BX6 6BM8 6BX6 6SN7GT 6BM8 6AL5 6SN7GT 6CM5 6R3 1S2 5AS4 21CBP4A
Semiconductors (the count is only for transistors) OA79 OA79
Main principle Superhet with RF-stage; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 230-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Connoisseur VB1 Ch= TE100 - Crosley Brand Australia
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes

This is a 21 inch B&W television that tunes the 10 Australian VHF channels standard at the time.

Cabinet finishes available in Walnut, Maple & Rosewood.

Price in first year of sale 219.45 AUS £
Literature/Schematics (1) J.R. Publications Television Service Handbook (L.J. Series Vol.1, 1962 & 1967, Page C21.)
Literature/Schematics (2) - - Manufacturers Literature (Crosley Service Manual for VB Series, Feb 1959.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
