• Country
• United States of America (USA)

• Manufacturer / Brand
• Croydon (where?)

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 359245

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6BC5 or 6AG5 or 6CB6 6J6 6AU6 6AU6 6AU6 6CB6 6AU6 6T8 6K6GT 12AU7 6SN7GT 6AL5 6SN7GT 6AV5GT 6W4GT 1B3GT 5U4G 21LP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Croydon C21FCM - Croydon where?

• Shape
• Tablemodel, with any shape - general.

• Notes

• Croydon model C21FCM is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 22-A-77-X and picture tube 21LP4A.



• Literature/Schematics (1)

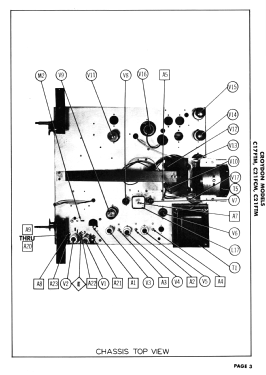

• Photofact Folder, Howard W. SAMS (Set 185, folder 4, dated 11-52)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 191, folder 1, dated 1-53)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
