8 Band Multi Wave

8 Band Multi Wave ; CTR-Elektronik, (ID = 641205) Radio 8 Band Multi Wave ; CTR-Elektronik, (ID = 641206) Radio

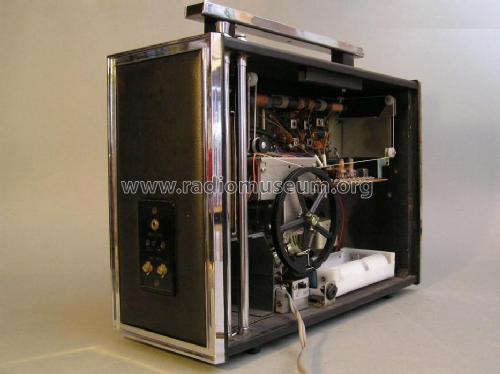

8 Band Multi Wave ; CTR-Elektronik, (ID = 641207) Radio 8 Band Multi Wave ; CTR-Elektronik, (ID = 641208) Radio
Use red slider bar for more.
8 Band Multi Wave ; CTR-Elektronik, (ID = 641205) Radio
CTR-Elektronik,: 8 Band Multi Wave [Radio] ID = 641205 933x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8 Band Multi Wave, CTR-Elektronik, Nürnberg:
Front

Country:  Germany
Manufacturer / Brand:  CTR-Elektronik, Nürnberg
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 8 Band Multi Wave - CTR-Elektronik, Nürnberg
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 365 x 135 x 295 mm / 14.4 x 5.3 x 11.6 inch
Notes Police: 148MHz-174MHz; Air: 108MHz-136MHz; FM; LW; AM; MB: 1,6MHZ-4MHz; SW1: 3,7MHz-9MHz; SW2: 9MHz-22MHz; 4 Monozellen.
Net weight (2.2 lb = 1 kg) 4.160 kg / 9 lb 2.6 oz (9.163 lb)
Collectors' prices

Model page created by Gerhard Weiss. See "Data change" for further contributors.
