Schiebewiderstand FS IV 19

Culatti AG; Zürich, Steinen

  • Year
  • 1950–2020 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 329475

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed / 230 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Special material, described in the notes.
  • from Radiomuseum.org
  • Model: Schiebewiderstand FS IV 19 - Culatti AG; Zürich, Steinen
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Culatti Leistungswiderstand (Vorschaltwiderstand) Typ FS, Grösse IV, Nr. 19
    für Labor- oder auch Schulungszwecke

     Bauart

     Schiebewiderstand mit Metallchassis für Tafeleinbau

     Material

     Widerstandsdraht auf Keramikrohr gewickelt, verschiebbarer Abgriff

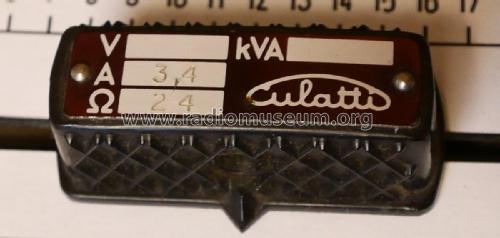

     Widerstandswert

     24 Ω nominal (gemessen maximal 25,8 Ω)

     Belastbarkeit

     300 W

     Betriebsspannung

     230 V (Keramikisolatoren mit Gewindeanschlüssen)

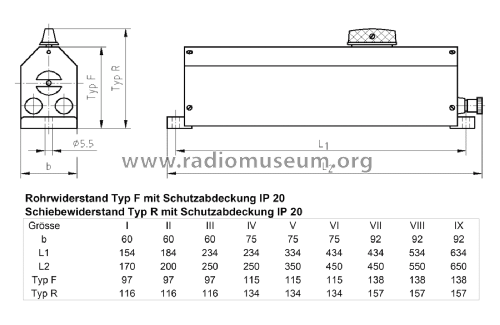

     Abmessungen

     Frontplatte 80 mm x 260 mm

  • Net weight (2.2 lb = 1 kg)
  • 0.930 kg / 2 lb 0.8 oz (2.048 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Achim Dassow. See "Data change" for further contributors.
