• Country
• South Korea

• Manufacturer / Brand
• Daewoo Electronics (Daytron); Seoul

• Year
• 2000 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 309877

• Number of Transistors
• 2

• Semiconductors
• S9012 S9012 LA1186 LA1805 UTC2025 BA3313 1N4004 1N4004 1N4004 1N4004

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220-230 / C: 8 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 cm = 3.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

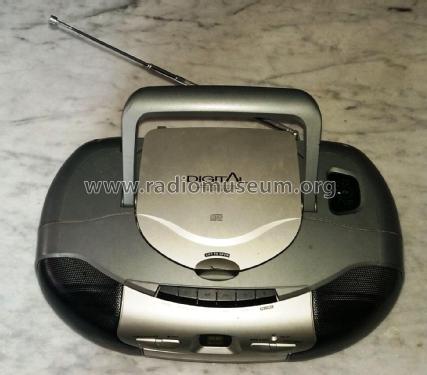

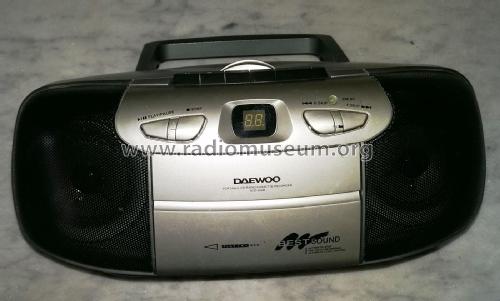

• Model: Portable CD Radio Cassette Recorder ACD-506M - Daewoo Electronics Daytron;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 340 x 145 x 220 mm / 13.4 x 5.7 x 8.7 inch

• Notes

• Stereo FM radio with AM. Stereo CD player and stereo cassette recorder/player.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
