CN-620A

CN-620A; Daiwa Industry Co, (ID = 592443) Amateur-D
CN-620A; Daiwa Industry Co, (ID = 592475) Amateur-D CN-620A; Daiwa Industry Co, (ID = 655271) Amateur-D
CN-620A; Daiwa Industry Co, (ID = 621401) Amateur-D CN-620A; Daiwa Industry Co, (ID = 626936) Amateur-D
CN-620A; Daiwa Industry Co, (ID = 655270) Amateur-D CN-620A; Daiwa Industry Co, (ID = 655272) Amateur-D
CN-620A; Daiwa Industry Co, (ID = 1353237) Amateur-D CN-620A; Daiwa Industry Co, (ID = 1353238) Amateur-D
CN-620A; Daiwa Industry Co, (ID = 1353239) Amateur-D CN-620A; Daiwa Industry Co, (ID = 1353240) Amateur-D
Use red slider bar for more.
CN-620A; Daiwa Industry Co, (ID = 592475) Amateur-D
Daiwa Industry Co,: CN-620A [Amateur-D] ID = 592475 930x596
Select picture or schematic to display from thumbnails on the right and click for download.
For model CN-620A, Daiwa Industry Co, Tokyo

Country:  Japan
Manufacturer / Brand:  Daiwa Industry Co, Tokyo
Year: 1980 ?? Category: Amateur Equipment (Other, but not Key)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: CN-620A - Daiwa Industry Co, Tokyo
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 180 x 85 x 120 mm / 7.1 x 3.3 x 4.7 inch

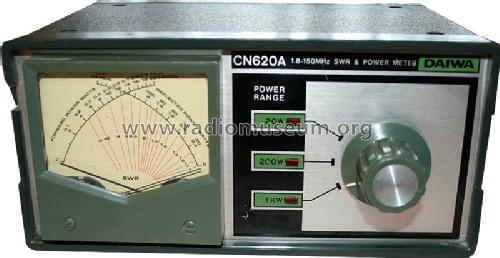

Notes DAIWA SWR & Power Meter CN-620A.

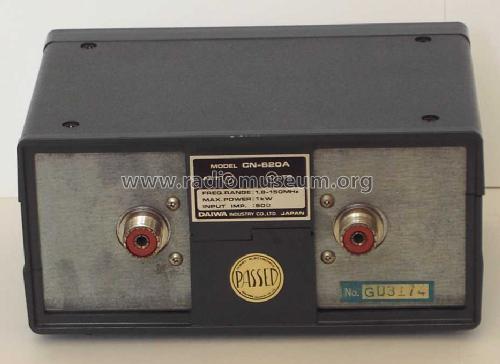

Frequency range: 1.8-150 MHz; Input/output impedance: 50 Ohm; Power range: Forward 20 W/200 W/1 kW, Reflected 4 W/40 W/200 W; SWR detection sensitivity: 4 W min.; Input/output connectors: SO-239.
Source of data -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
