Amperemeter 15/150 A
Dalmau Montero; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Dalmau Montero; Barcelona
- Year
- 1928 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 313415
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Amperemeter 15/150 A - Dalmau Montero; Barcelona
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 180 x 180 x 115 mm / 7.1 x 7.1 x 4.5 inch
- Notes
-

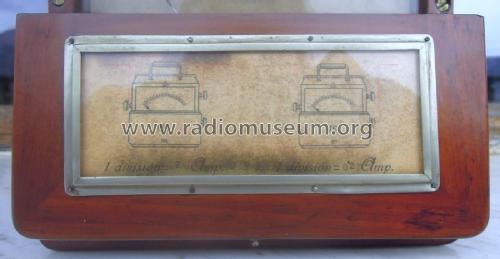

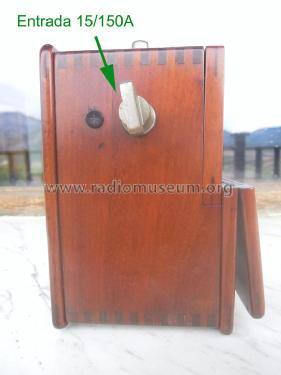

This model is an ancient instrument (about 1928) provided with 2 scales - 15 and 150 DCA - for measuring medium and high values of electrical current. No adjustment of mechanical zero available.
Moving coil instrument.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Author
- Model page created by Josep-Joan Berenguer. See "Data change" for further contributors.
