• Country
• Great Britain (UK)

• Manufacturer / Brand
• Dansette Products Ltd.; London

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131662

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC81D OC81 OC81 OA70

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.25 inch = 8.3 cm

• Power out
• 0.6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Companion [Early] - Dansette Products Ltd.; London

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8.5 x 5.5 x 3.25 inch / 216 x 140 x 83 mm

• Notes
• Transistors : GET874, 2x GET873, 3x GET114 or OC44, 2x OC45, OC81D, 2x OC81. Socket for external aerial. Late production sets use a Mixer/IF module.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 11.00 GBP

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)

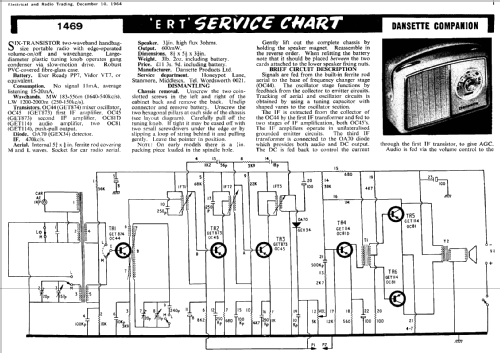

• ERT service chart 1469 dated December 10 1964.

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
